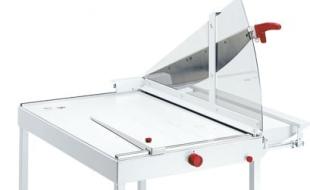

Large format professional trimmers with stand

Large format professional trimmers with stand

  • Resharpenable, high-quality blade set made of “Solingen steel“
  • Standard equipment includes a sturdy stand and foot pedal clamping
  • Collapsible extension table (on the right side) | side lay with measuring scale in mm/inches
  • Backgauge and front gauge (the latter with integrated narrow strip cutting device for cutting of strips as small as one mm
  • The front gauge is adjustable via a rotary knob with fine adjustment scale | standard paper sizes indicated on the table
  • Stationary blade guard made from transparent, unbreakable plastic material and blade locking device
  • Solid cast aluminium blade mounting bracket and sturdy blade axle with double bearing for precise cuts
  • Most solid metal construction
  • Cutting length 800 mm, obtuse angled (75°) blade (cuts paper, cardboard and also heavier materials) as standard equipment – ointed (25°) blade (cuts paper and light cardboard) available upon request.

Product characteristics

The trimmer is optionally available with obtuse angled (75°) universal blade – cuts paper, cardboard and also heavier materials such as thin metal plates, foils, balsa wood, linoleum...(with up to 4 mm cutting height) or with pointed (25°) paper blade (cuts up to approx. 20 sheets of paper, 70 g/m2 ). Resharpenable, high-quality blade set made of “Solingen steel”. Standard equipment includes a sturdy stand with integrated foot pedal clamping system. Fold-away extension table (on the right side). Side lay with measuring scale in mm/inches. Backgauge and front gauge (the latter with integrated narrow strip cutting device for cutting of small strips). The front gauge is adjustable via a rotary knob with fine adjustment scale. Standard paper sizes from A6 to A3, American sizes (letter, legal, ledger size) and various angle indications printed on the table.

Specification
  • Cutting length 800 mm
  • Cutting capacity max. 4 mm cutting height or approx. 20 sheets*
  • Table size W 605 x D 800 mm
  • Format A3 - A6
  • indications + letter, legal, ledger size
  • Dimensions H 1215 x W 670 x D 1080 mm (Width with side table in working position: 890 mm)
  • Weight 55 kg
