Professional Cutter, Creaser & Perforator All-In-One-Pass

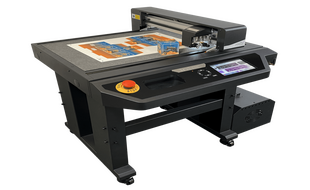

The Morgana ColorCut FB580 offers a variety of machines to meet the cutting and creasing of almost any type of print, from cardboard packaging and protective cartons to synthetic point of sale and kiss cut stickers/labels. These machines are ideal for light to medium production of two and three dimensional objects. Additionally, ColorCut's on-demand digital production capability makes it ideal for prototyping.

Share on:

Technical specifications

Functions

Slit, cross cut, crease, Perforate, score, slit-score

Feedable paper size

210(W)x210(L) - 370(W)x520(L) mm (up to 1,600mm with support)

Minimum finished size

55(W)x45(L) mm

Paper weight

120 - *400 gsm
*Depending on paper quality

Operation

10” Color touchpanel

Job memories

266 preset jobs
100 + 50 customized job memories

Feeding mechanism

The AeroCut X Pro’s air-suction top feed system feeds, precisely and without damage, a variety of weight and quality of stock one-by-one from the top of the ream.The feed tray has a stacking capacity of 100mm.

Speed (Sheets/min. )

21 up business cards (SRA3): 9 sheets / min

8 up post cards (SRA3): 14 sheets / min

1 crease (A4): Up to 68 sheets / min

Dimensions

1,177(W) x709(D) x1,076(H) mm

Footprint

2,397(W) x 709(D)mm

NET Weight

290kg

Power supply Power consumption

100-120VAC or 200-240VAC, 50/60Hz
