Production Booklet Maker for all printers

In today’s demanding printing environment, a flexible solution to booklet production is a must for all printers. Often there is a need to produce booklets from both digital presses and litho machines, or where covers have been coated or laminated.
The required print volume and quality will determine the appropriate printing method and in many cases the finished
booklet has been printed on different print engines and thus needs to be merged.
Also, prints from a digital printers come pre-collated, whereas from an offset press they require sorting or collating.
All this is a challenge for the finishing devices in order to keep a good workflow and maintain productivity.
BM4035 can process booklet up to 140 pages, BM4050 can process booklet up to 200 pages.

Technical Specifications

Main Features

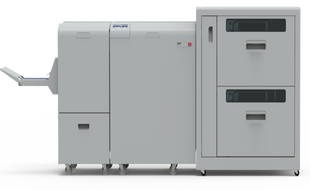

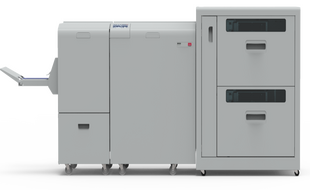

Model BM4035 / BM4050

Fold capacity: 35 sheets of 80 gsm

Stapling capacity: 35 sheets of 80 gsm

Speed: 3000 books / hour

Max paper size: 320 x 660mm

Min paper size: 145 x 210mm

Paper weight: 60 - 350gsm (can be supported on some media

Staling method: Corner, Edge

Stapling head: 2

Stapling position: 4

Staple size: Stapling 26/6, 66/6

Footprint (L) x (W): 1170 x 880mm

Optional Connectible: CST Crease Side Trimmer, VFX Feeder, FM Finishing Module
