A new dimension to PUR Binding. Four times stronger than hot melt.

PUR is the strongest, most flexible binding adhesive available and offers several additional advantages over other binding adhesives. When inks, coatings or digital print toners are present in the spine area these can compromise the strength of typical hotmelt perfect binding. PUR is resistant to this and will form a super-strong bond with all weights and finishes of paper stocks. In addition PUR works well with synthetic and recycled-content stock.



The DigiBook 150 is an entry level PUR binder and is ideally suited to traditional and digital printers who require short runs of PUR perfect bound books to a professional standard. The DigiBook 150 is equipped with a patented closed gluing system where the spine and side gluing is applied by a slot applicator for the utmost binding quality and accuracy.

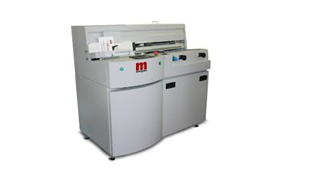

MORGANA DigiBook 150

Technical specifications

MORGANA DigiBook 150
  • Books per hour: Up to 120
  • Number of clamps: 1
  • Touch screen: Yes
  • Book size: max 380mm x 320mm
  • Book size: min 120mm x 110mm
  • Milling width: 3mm
  • Block/spine thickness: 1 – 50mm
  • Cover dimension: max 700mm x 380mm
  • Cover dimension: min 222mm x 120mm
  • Cover weight: max 400 gsm
  • Dimensions: L 1670mm x W 1070mm x H 1560mm
  • PUR glue tank capacity: Up to 3kg
  • Machine weight: 400kg (gross) - 250kg (net)
  • Power requirement: 220v, 13 amp
