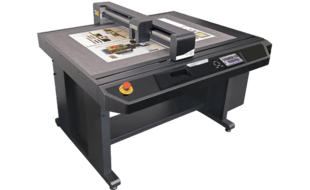

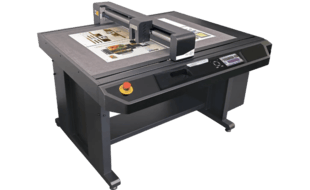

Professional Cutter, Creaser & Perforator All-In-One-Pass

The NEW FB780-T is the world's first B2 flatbed cutter with the ultimate crease and precision cutting for any die-cut application. This powerful and accurate device can cut and crease virtually any form of print, from sample and prototype packaging for high-end products and protective cartons to synthetic point-of-sale items and kiss-cut adhesive labels/stickers. With our combined industry leading ColorCut Pro software, the FB780-T brings many advanced features to aid design and production.

PDF icon Download here: FB780-T Brochure

Share on:

Features

Type of Cut

Die-Cut, Half Cut (Kiss-Cut), Perf

Maximum Media Size

580mm x 800mm

Effective Contour Cutting Area

480mm x 660mm

Cutting Depth

Paper/Card - Up to 800 micron

Max depth - 1000 micron (low density substrate i.e rice paper/softboard)

High Density Substrates:

  • PVC - up to 0.4mm
  • PET - up to 0.3mm
  • Magnetic Sticker - up to 600μ
Speed Option

High Definition: 750mm/s

Standard Mode: 960mm/s

Fast Mode: Up to 1200mm/s

Dimensions

1,065(L) x 1190(W) x 1,105(H) mm (includes vacuum fan)

NET Weight

84.4kgs including fan

Power supply Power consumption

100-240v 50/60Hz, 350W
