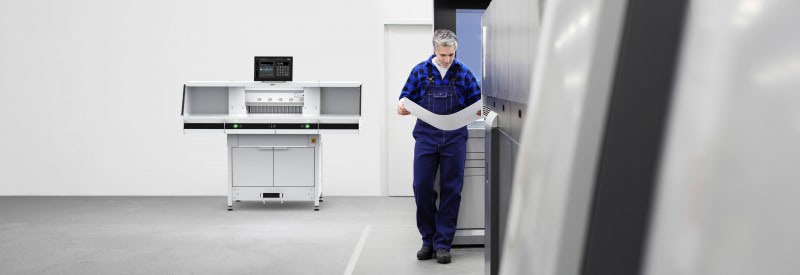

Next-generation programmable powered guillotine : THE 56

Well-designed digital functions, intuitive controls, and easy to use: THE 56 makes guillotine work easier and more satisfying than ever – even on demanding projects. Enjoy optimised workflows and flawless precision. Easy on the hands, comfortable on the eyes: The display has a continuously adjustable tilt and adapts perfectly to light conditionsand the ergonomic needs of the user.

PDF icon ideal_the_56_catalog.pdf

Share on:

THE 56
Beautifully simple

Precision
Clean edges with every cut precision-bearing blade guide electronically
monitored false clamp plate manual fine adjustment of the backgauge
Everything fits together perfectly
for flawless results and maximum safety.

Safety
Safety Cutting System (SCS) IR light beam safety curtain
two-handed blade activation IDEAL safety drive
safe exchanging of blades blade depth adjustment from the outside
restricted access via password protection

This hydraulic paper clamp system with adjustable and programmable clamping pressure
alongside independent mechanical foot clamping is a patented-pending IDEAL in-house technology.

Comfort
Ergonomically sound for every user adjustable table height integrated function
for exchanging cutting sticks operator guidance via colour signals



Specification
  • Cutting Length - 560 mm
  • Cutting Height - 80/77 mm
  • Narrow cut - <15 / 60 mm
  • Table depth 560 mm
  • Power - 230 V / 50 Hz / 1~
  • Fuse protection - 16 amps
  • Dimensions - 1523 x 979 x 1211 mm (H x W x D)
  • Table height - Adjustable from 950 - 1000 mm
  • Weight - approx. 303 kg
