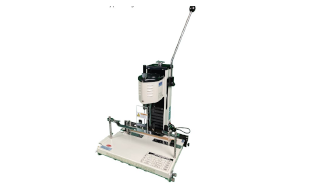

Spindle Electric Paper Drilling Machine

Do you have large quantities of papers which require drilling of round holes? SPC’s FP-III-100-NT paper drilling machine is the best selling equipment to do this job. It has been developed based on 25 years experience and is built in combinable units system. This drilling machine can bores through 100mm thick stack of paper in less than 1-3 seconds.
PDF icon spc_fp-iii-100-nt_catalog.pdf

Share on:

Product Description

  1. Can use drills with a diameter between 3-9 mm; ; the equipment is equipped as standard with a 6mm drill, and other diameters can be purchased as an option.
  2. Perforates up to 1000 sheets (80g / sqm)
  3. 1, 2, 3 or 4 holes can be drilled due to the installation of a special programmable table that allows the realization of different standard or optional nonstandard holes
  4. Strong and vibration-free, thanks to the special motor
  5. Drilling edge adjustable between 5-50 mm
  6. Simple setting of the drilling depth
  7. Equipped with sensor for thermal protection
  8. Detachable waste tank
  9. Power supply: 220V / 50Hz
  10. Dimensions: 50x50x60 cm; weight: 35.0 Kg

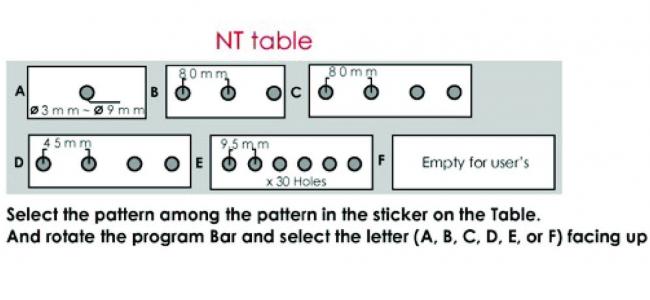

NT table

Technical Specifications
  • Standard Drill Bits : 6.0 mm (0.236") x 100(L) mm
  • Optional Drill Bits : 3.0 mm ~ 9.0 mm (For standard machine) / 3.0 mm ~ 14.0 mm (LS type machine)
  • Back Margin : 5 ~ 50 mm
  • Dimension : 500 mm(W) x 500 mm(D) x 600 mm(H)
  • Weight : 33 kgs
