Convenient, Electric Guillotine with Automatic Clamp, 430mm Cutting Length (formats up to A3)

Cuts up to 500 sheets of paper (70 g/m2) or bound brochures up to 40 mm | electro-mechanical blade and clamp drive | blade made of german high quality steel | solid steel blade carrier | adjustable blade guides made of hardened steel.

  • Cutting length: 430 mm
  • Cutting height: 40 mm
  • Blade changing device
  • Cutting stick change
PDF icon IDEAL 4350 Brochure

Share on:

| automatic clamp | precision side lay | spindle guided backgauge with hand crank | digital measurement readout for backgauge positioning (cm or inches) | optical cutting line with bright and durable LEDs | solid all-metal construction | designed as table top machine, a stand or a cabinet are available as option SCS - the Safety Cutting System made by IDEAL provides numerous safety features: hinged, electronically controlled safety guard on the front table; transparent safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt control (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade change from the front of the machine without removing covers; cutting stick can be turned or replaced easily from the outside of the machine.

Technical Specifications

IDEAL 4350
  • Power 230 V / 50 Hz / 1~
  • Capacity 0.45 kW
  • Dimensions 355 x 640 x 870 mm (H x W x D)

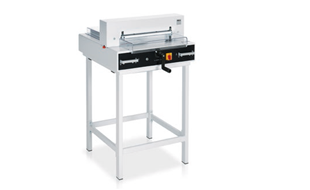

  • height with stand 1085 mm
  • height with cabinet 1080 mm
  • Weight 86 kg table top model
  • 96 kg with stand
  • 118 kg with cabinet
